DIY PIT CART
Building your own pit cart is a large project that requires careful planning to avoid wasting metal. These build files provide the exact measurements and parts lists used by FDF RaceShop to create the Pit Cart. By following these guides, you get a layout that includes a steering system and options for brakes as well
Build Details

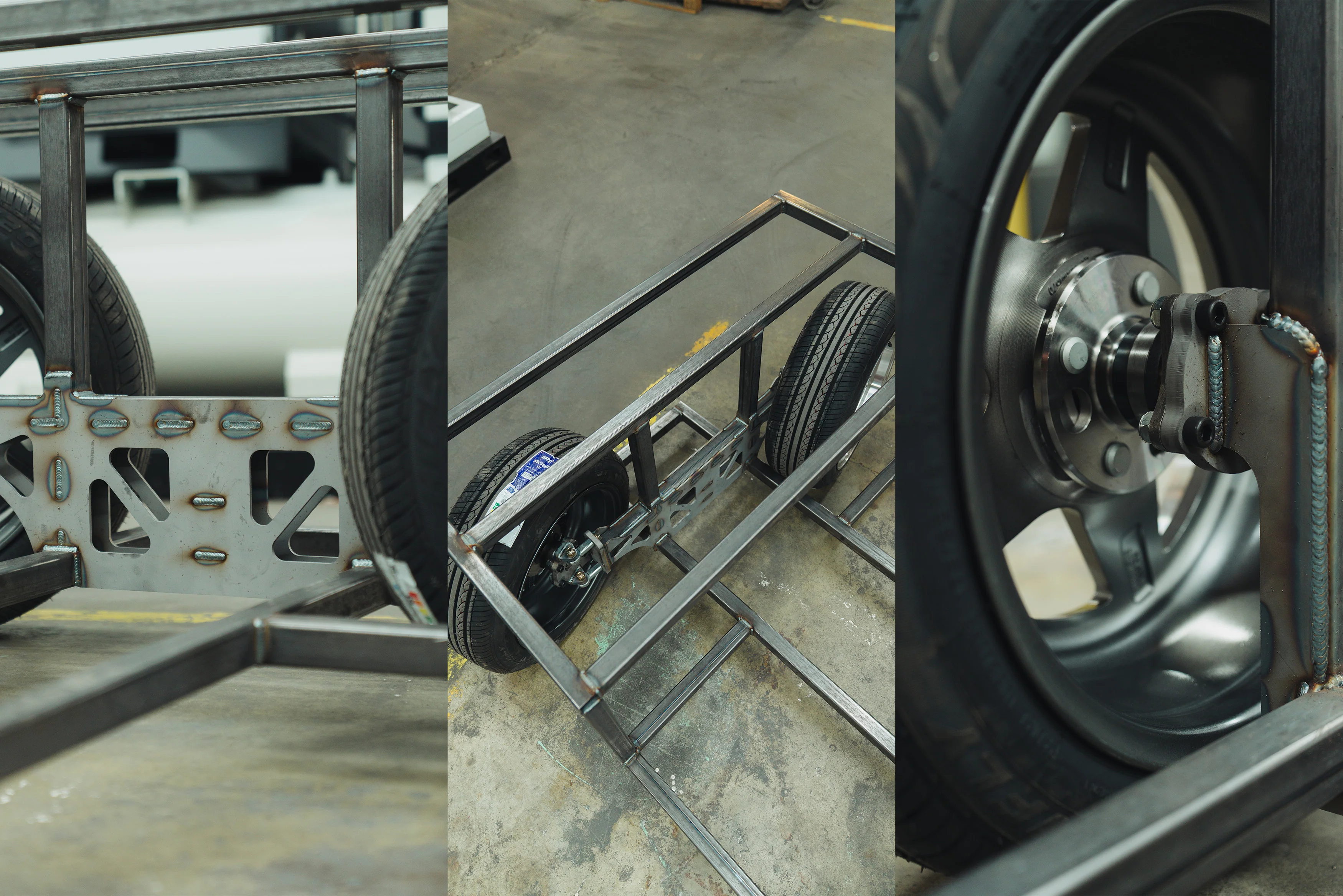

The project uses a mix of tube and laser-cut sheet metal. All sheet metal parts are designed with slot and tab features for easy assembly and welding, and we also made sure you can use E-Track equipment all over the cart for easy tie downs.
What you get for $250
The download includes several detailed assembly guides that cover every part of the cart from the ground up.
- Chassis Assembly Drawings: A multi-page, comprehensive guide for the main frame, middle level, and top shelf.
- .DXF Files: All necessary components with material and thickness.

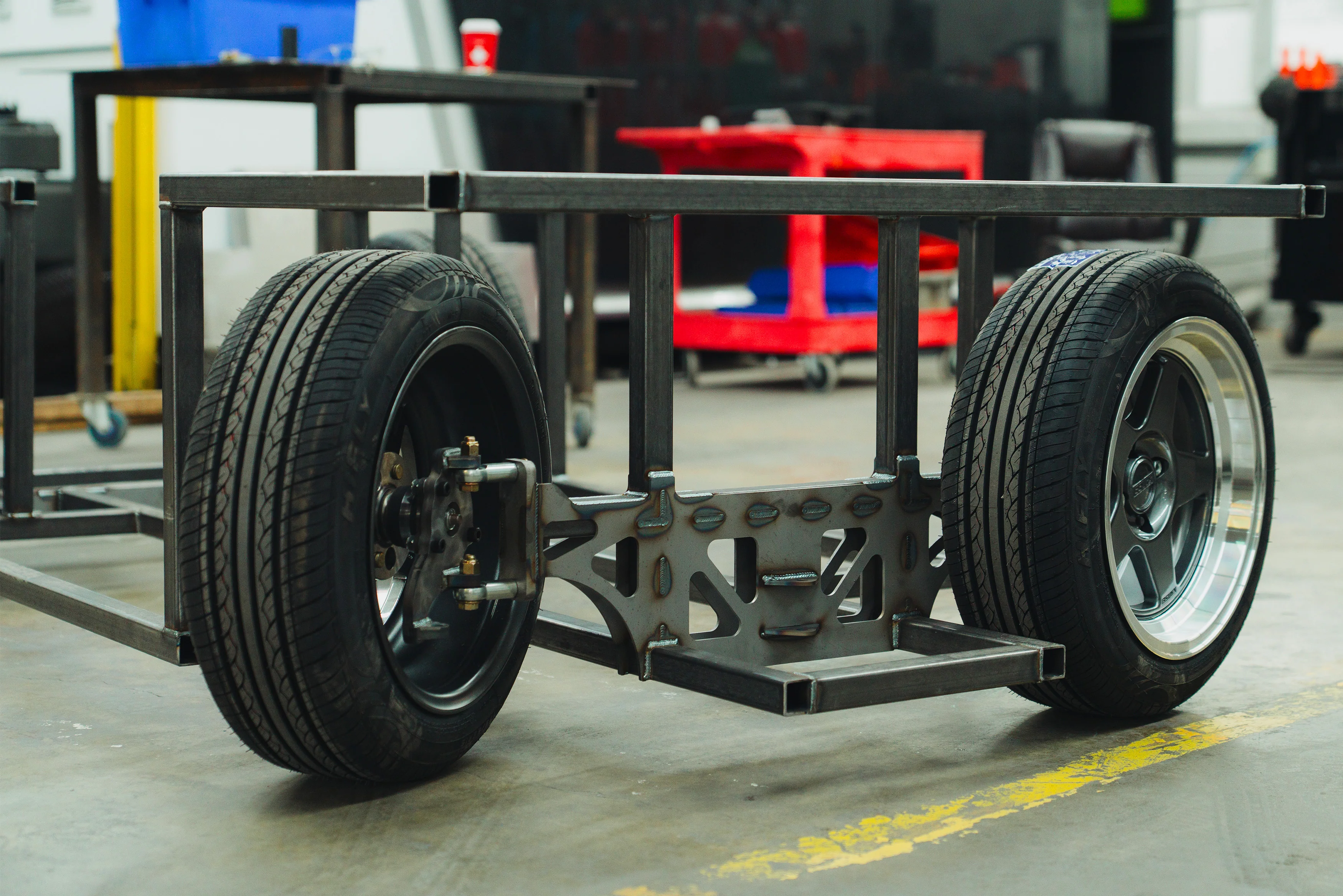

- Subframe Assembly: Layouts for the steering mounts, knuckles, and linkages.
- Brake Rotor Assembly: Specifics on how to mount the hubs, rotors, and calipers.
- Mega Cart Hardware List: A full breakdown of every bolt and nut needed
- Efficient Cut List: A guide for cutting your square tube to get the most pieces out of every 20 foot bar with the least amount of waste.
Building Advice
To make sure the cart is straight and rolls true, squaring should be done using corner-to-corner measurements (Included in the build guide) You should not rely only on a speed square or carpenter's square for a project of this size. Using these files ensures that your tow tube and steering bars are positioned correctly for the best alignment. For the best results, it is recommended to bolt down features before welding to keep everything square and aligned.
Wheel and Tire Recommendation

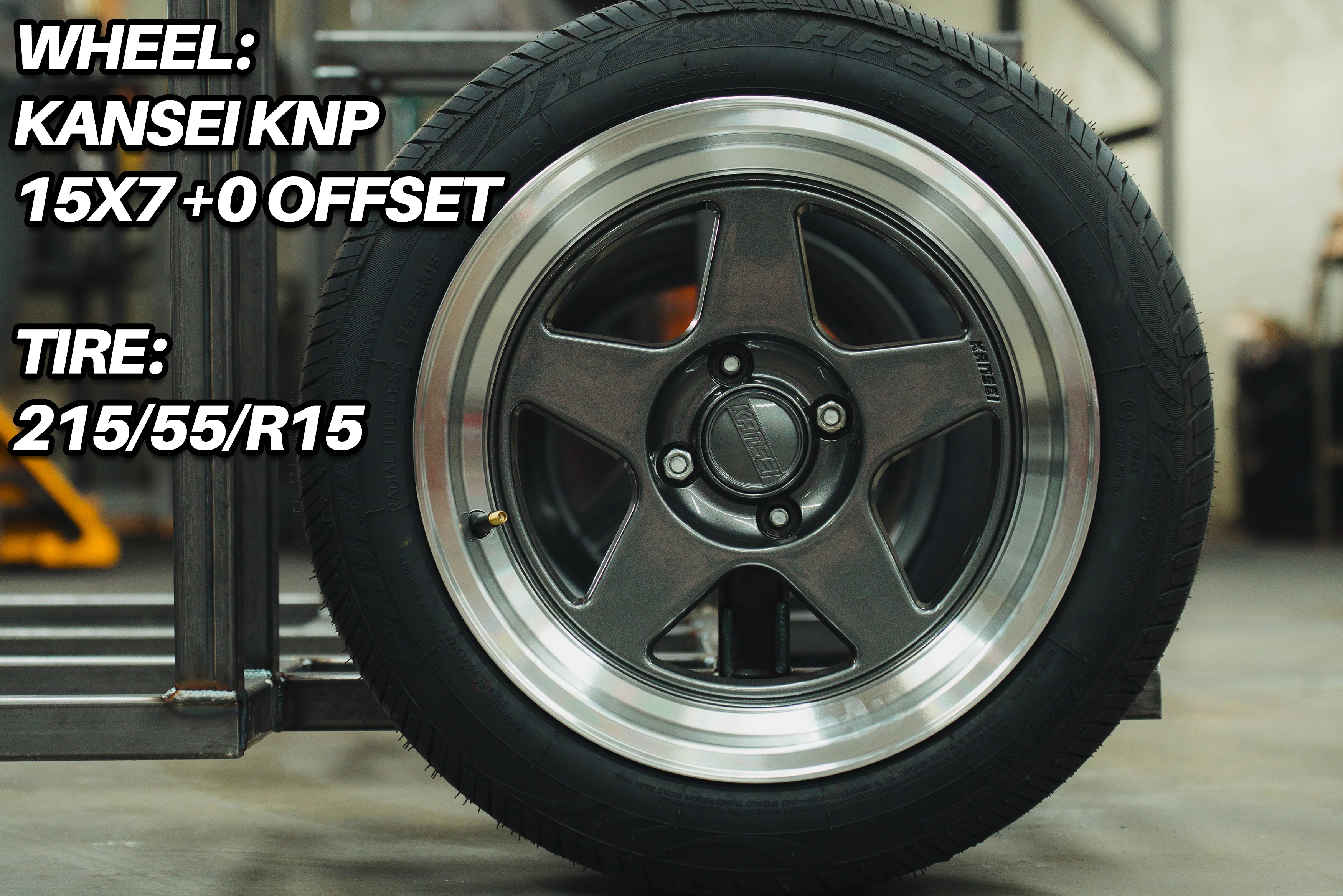

Wheel - Kansei KNP 15x7 +0 offset
Tire - 215/55/R15
