Visualize Suspension Geometry with This 3D Printed BRZ Multi-Link Model

Understanding suspension geometry can be difficult when everything is hidden under the car. Our 3D printed rear suspension display was designed to make those relationships easy to see, understand, and demonstrate.

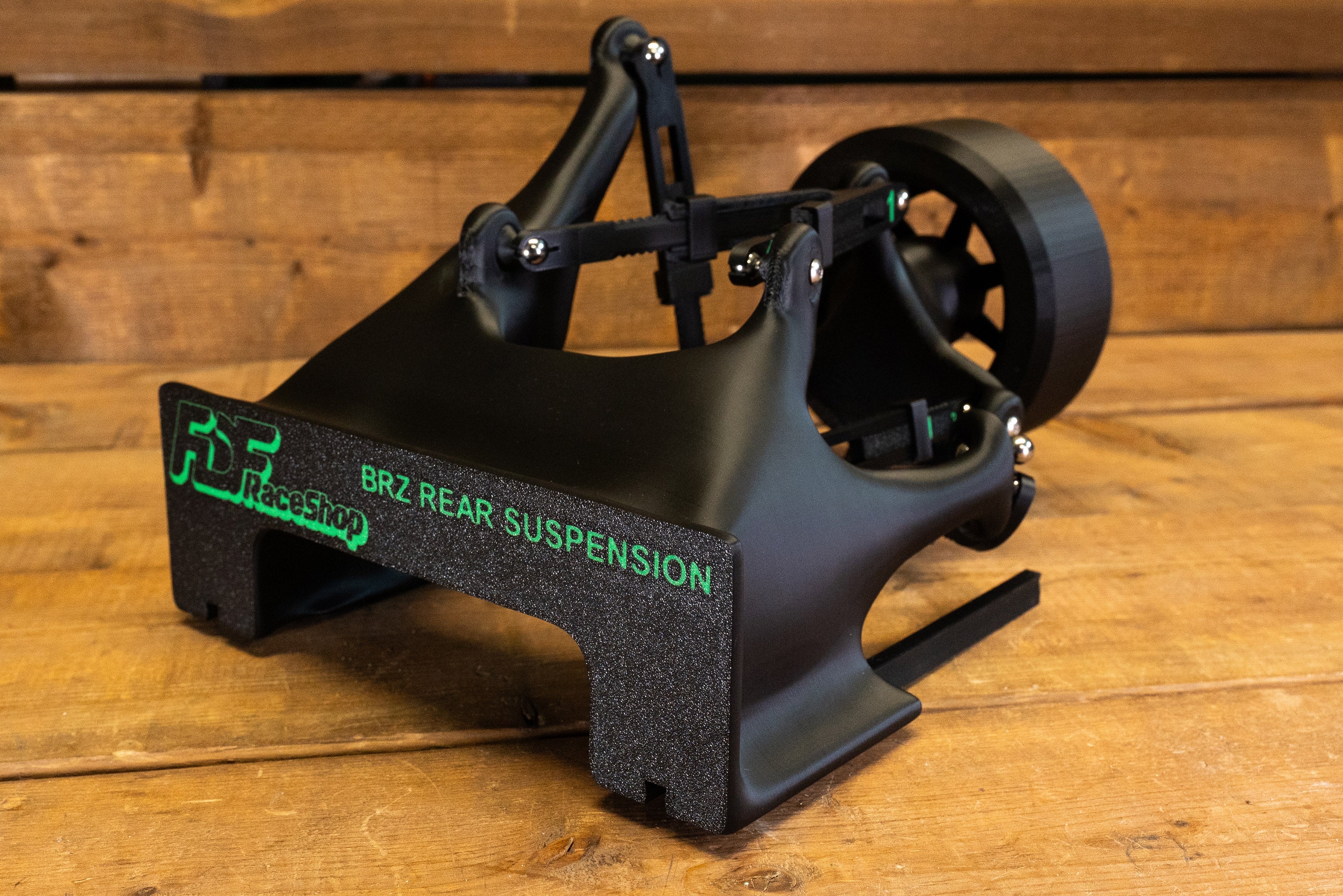

This fully articulated model replicates a multi-link rear suspension and allows you to physically adjust each control arm and cycle the suspension through its travel. By changing the length and position of the arms, you can immediately see how adjustments affect camber, toe, bump steer, wheel position, and overall suspension behavior.

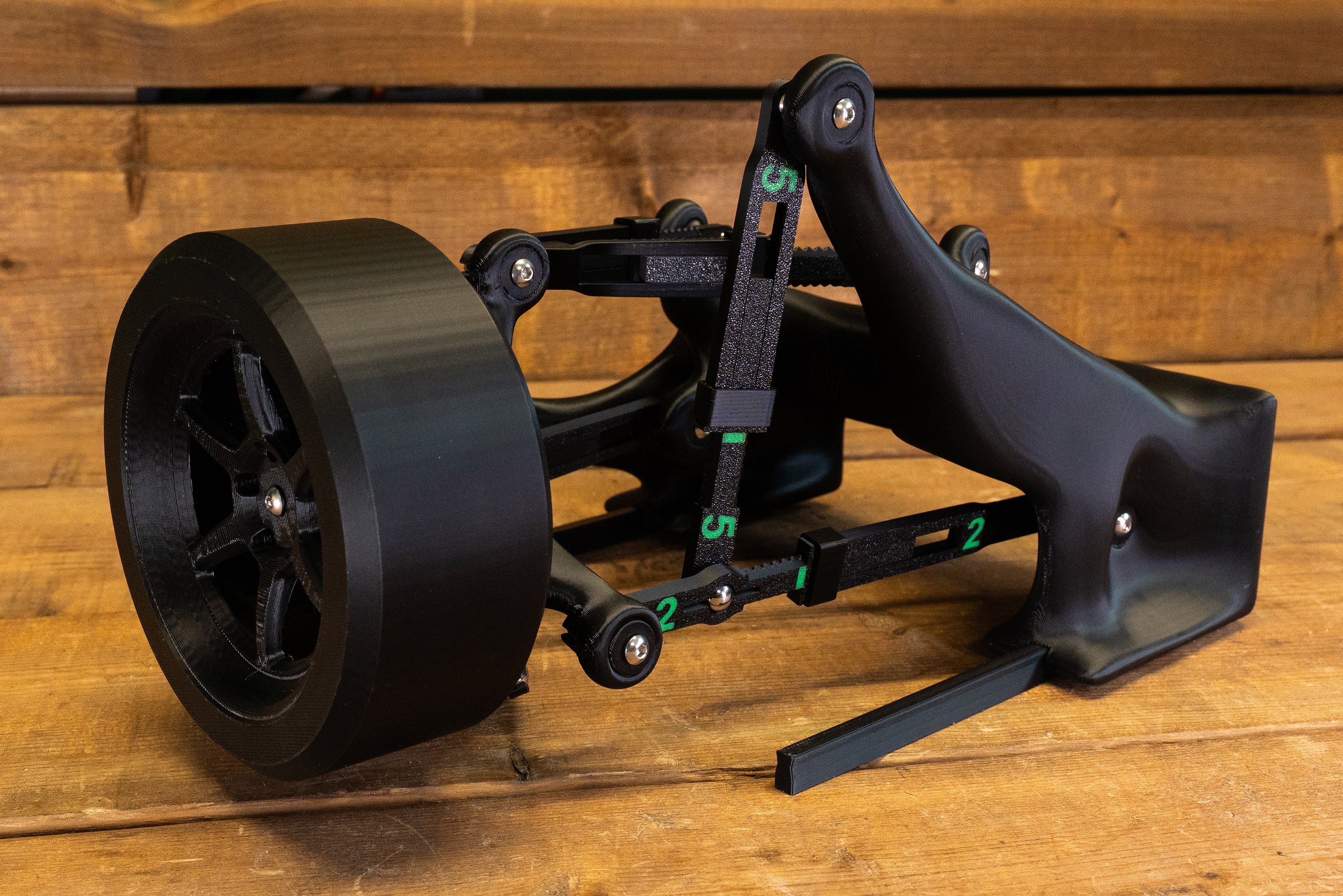

Each control arm is numbered. Reference marks on the arms also indicate the OEM position, making it easy to return the model to a baseline before testing different setups.

The display is designed not only as a learning tool, but also as a hands-on demonstration piece for shops, alignment racks, race teams, and motorsport enthusiasts. It allows you to visualize suspension changes in seconds and better understand how those adjustments will translate to the car.

Key Features

Fully 3D printed articulated suspension model
Adjustable control arms that replicate real suspension adjustments
Visualizes camber, toe, bump steer, and wheel movement
OEM reference marks for baseline setup
Numbered arms with reference guide explaining each component
Suspension can be cycled through its travel to observe geometry changes
Great for shops, race teams, alignment setups, classrooms, or displays
